OVERVIEW

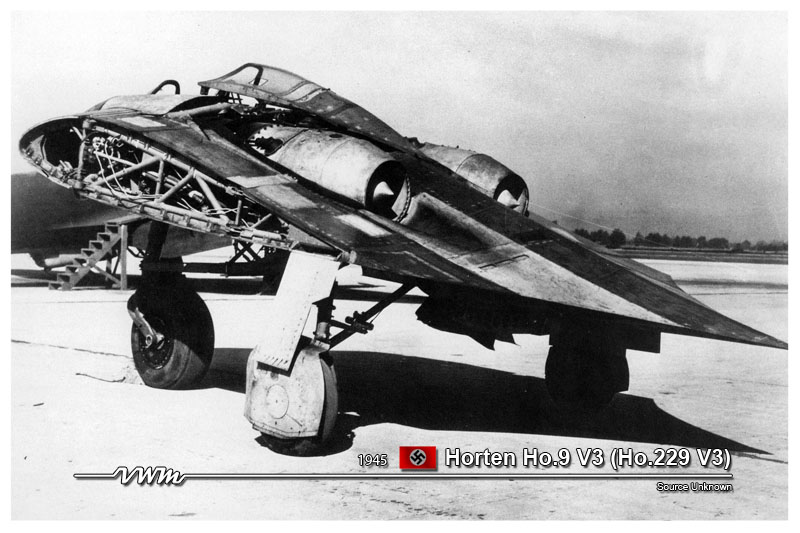

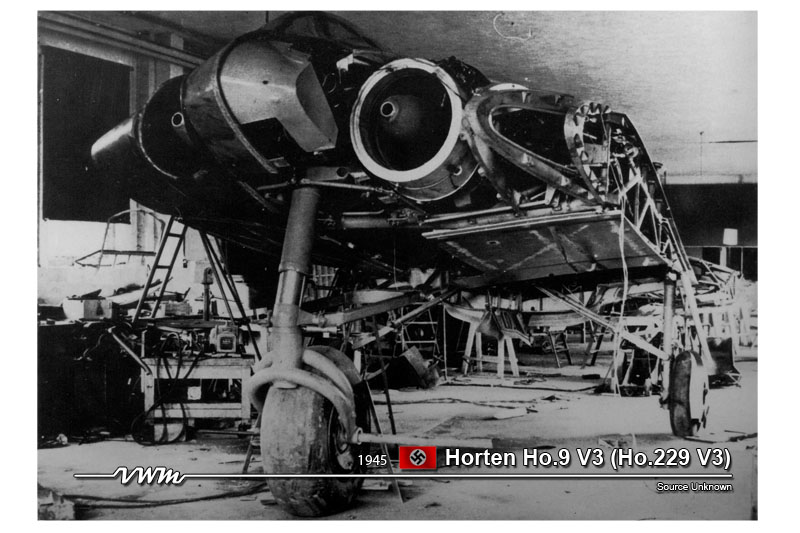

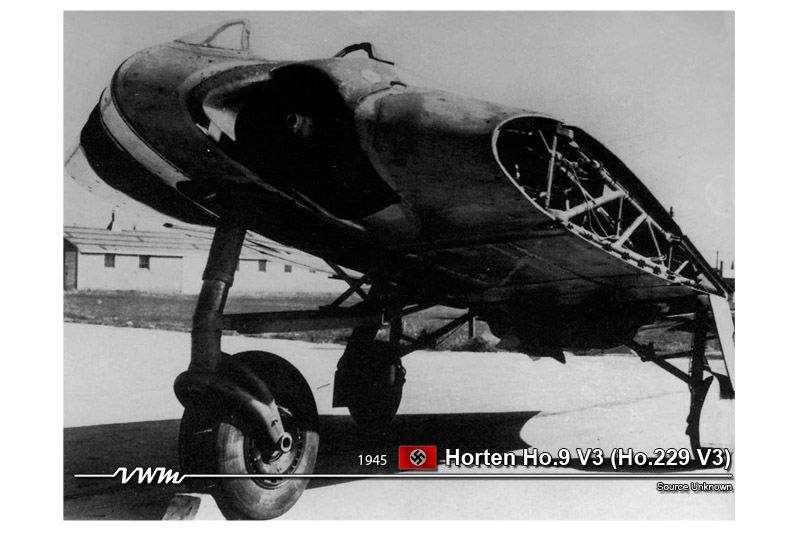

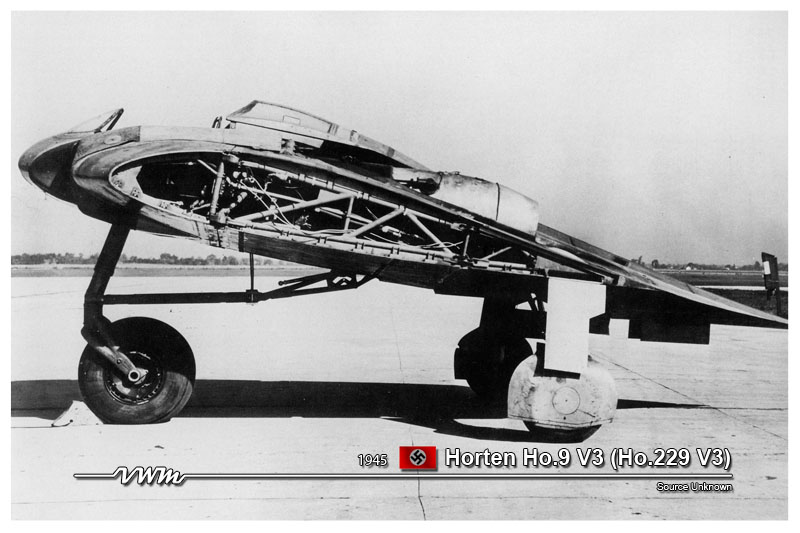

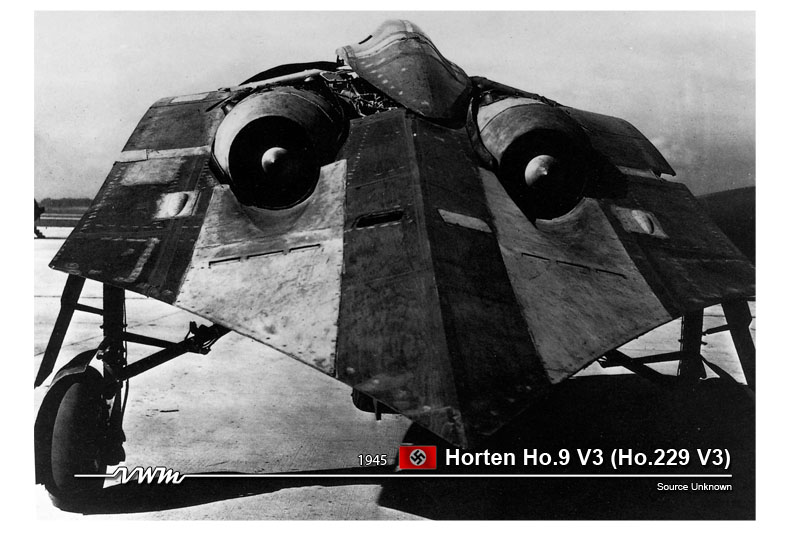

HORTEN Ho.9 V3 (Ho.229 V3)
1945

FIGHTER - PROTOTYPE






OVERVIEW



…More to come




DATA


HORTEN Ho.9 V3 (Ho.229 V3)
RLM-No.8-229, Werk-Nr.39

CLASSIFICATION
CLASS :
 FIGHTER - PROTOTYPE
COUNTRY OF ORIGIN :
 GERMANY
MANUFACTURER :
 Horten Flugzeugbau GmbH
FIRST FLIGHT :
 1945
SERVICE DELIVERY :
 1945
NUMBER BUILT :
 At least one sample 85% completed by wars end

SPECIFICATION
SPAN :
 55ft 1in (16.8m)
LENGTH :
 24ft 78in (7.5m)
HEIGHT :
 9ft 2in (2.8m)
WING AREA :
 570.5 sq ft (53 sq m)
WEIGHT EMPTY :
 11,170 lbs (5067 kg)
WEIGHT LOADED :
 ---
WEIGHT MAX :
 19,840 lbs (8999 kg)
ARMAMENT :
 None installed, Proposed: 2 x MK 103, or 4 x MK 108, or 2 x MK 108
BOMB LOAD :
 2,205 lbs (1000 kg)
POWER PLANT :
 2 x Junkers Jumo 109-004 B Eight-Stage Axial-Flow Gas Turbine Units,

 Each Producing 1,980 lbf (8.8 kN) of Thrust
CREW :
 1-Pilot

PERFORMANCE
LANDING SPEED :
 97 mph (156 km/h)
CRUISING SPEED :
 393 mph (632 km/h) @ 32,810 ft (10000 km)
MAXIMUM SPEED :
 607 mph (977 km/h) @ 39,372 ft (12000 km)
CLIMB RATE :
 4,301 ft/min (1311 m/min)
RANGE :
 4.5 hrs
SERVICE CEILING :
 52,000 ft (15.8 km)




REFERENCES



Dabrowski, Hans-Peter. The Horten Flying Wing In World War II - The History & Development of the Ho 229. West Chester, PA: Schiffer Military History. 1991. ISBN 0-88740-357-3.

Dabrowski, Hans-Peter. Flying Wings of the Horten Brothers. Atglen, PA: Schiffer Military History. 1995. ISBN 08740-886-9.

Myhra, David. Horten Ho 9 - An Illustrated Series On Germany's Experimental Aircraft Of World War II. Atglen, PA: Schiffer Military History. 1999. ISBN 0-7643-0916-1.

Myhra, David. The Horten Brothers And Their All-Wing Aircraft. Atglen, PA: Schiffer Military History. 1998. ISBN 0-7643-0441-0.

Myhra, David. Monogram Close-Up 12 - Horten 229. Danvers, MA: Monogram Aviation Publication. 1983. ISBN 0-914144-12-X.

Wagner, Wolfgang. The History Of Germany Aviation - The First Jet Aircraft. Atglen, PA: Schiffer Military History. 1998. ISBN 0-7643-0488-7.

Myhra, David. The Horten Ho 9/Ho 229 Technical History. Atglen, PA: Schiffer Military History. 2002. ISBN 0-7643-1667-2.

Griehl, Manfred. Jet Planes of the Third Reich - The Secret Projects, Volume 1. Sturbridge, MA: Monogram Aviation Publications. 1998. ISBN 0-91414-36-7.

Rose, Bill. Secret Projects: Flying Wings And Tailless Aircraft. Sturbridge, MA: Ian Allan Publishing. 2010. ISBN 878-185780-320-4.
