The Virtual Weapon Museum

	AEROMARINE PG-1	1922
	PURSUIT & GROUND ATTACK

DATA

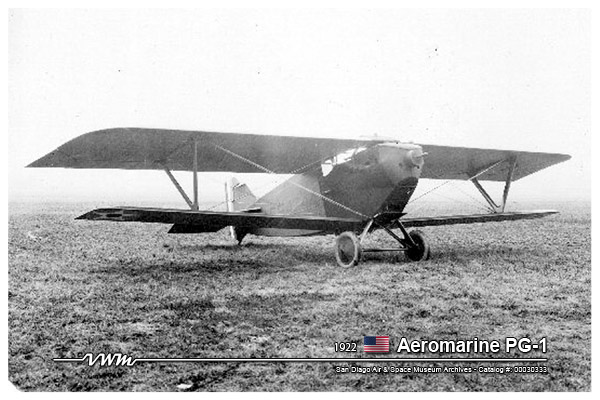

AEROMARINE PG-1

CLASSIFICATION
CLASS :	PURSUIT & GROUND ATTACK
COUNTRY OF ORIGIN :	UNITED STATES
MANUFACTURER :	AEROMARINE PLANE & MOTOR COMPANY
FIRST FLIGHT :	AUGUST 22, 1922
SERVICE DELIVERY :	NONE
NUMBER BUILT :	3

SPECIFICATION
SPAN :	40 ft 0 in (12.19 m)
LENGTH :	24 ft 6 in (7.47 m)
HEIGHT :	8 ft 0 in (2.44 m)
WING AREA :	389 sq ft (36.1 m sq)
WEIGHT EMPTY :	3,030 lb (1,374 kg)
WEIGHT LOADED :	3,918 lb (1,777 kg)
WEIGHT MAX :	--
POWER PLANT :	1 x Packard 1A-1116, Rated at 346 hp (258 kW)
ARMAMENT :	1 x 37mm Baldwin Cannon Firing Through the Propeller Hub,
	1 x 0.5in (12.7mm) Machine Gun
BOMB LOAD :	--
CREW :	1 - Pilot

PERFORMANCE
MAXIMUM SPEED :	130 mph (209 km/h)
CRUISING SPEED :	--
LANDING SPEED :	--
CLIMB RATE :	684 ft/min (3.47 m/s), Time to 6,500 ft (1980 m), 9.5 min
RANGE :	195 miles (314 km)
SERVICE CEILING :	19,000 ft (5791 m)

	REFERENCES
	Green, William; Swanborough, Gordon. The Complete Book of Fighters. New York: Barnes & Noble Books. 1998. ISBN 0-07607-0904-1. Taylor, John W.R. JANE'S Fighting Aircraft of World War I. New York:Military Press, 1990. ISBN 0-517-03376-3. Sharpe, Michael. Biplanes, Triplanes, & Seaplanes, London:Brown Brooks, Ltd, 2000. ISBN 1-897884-68-0.
