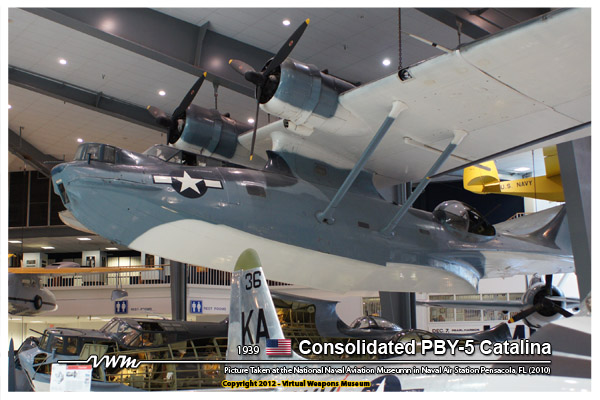

CONSOLIDATED PBY-5 CATALINA (EARLY)
1939

MULTI-ROLE/TWIN-ENGINE FLYING BOAT



Image Copyright - Virtual Weapons Museum


DATA


CONSOLIDATED PBY-5 CATALINA
 (EARLY)
CLASSIFICATION
CLASS :
 MULTI-ROLE/TWIN-ENGINE FLYING BOAT
COUNTRY OF ORIGIN :
 UNITED STATES
MANUFACTURER :
 CONSOLIDATED VULTEE AIRCRAFT CORPORATION
FIRST FLIGHT :
 1939
SERVICE DELIVERY :
 SEPTEMBER 1940
NUMBER BUILT :


SPECIFICATION
SPAN :
 104 ft
LENGTH :
 63 ft 10 in
HEIGHT :
 18 ft 11 in
WING AREA :
 1,400 sq ft
WEIGHT EMPTY :
 17,400 lbs
WEIGHT LOADED :
 26,200 lbs
WEIGHT MAX :
 33,389 lbs
POWER PLANT :
 Two Pratt & Whitney R-1830-82, 1,200 hp @ Takeoff,

 1,050 hp @ 5,700 ft, Two-Row, Twin Wasp Radial Engines
ARMAMENT :
 1 x 30 Machine Gun in Nose Turret

 2 x 50 cal Machine Gun Amidship in Two Sliding Waist Hatches

 1 x 50 cal Machine Guns in Bottom Rear of Hull Firing

 Through Tunnel Opening
BOMB LOAD :
 4 x 325 lbs Depth Charges in Underwing Racks, or

 4 x 500 lbs Bombs in Underwing Racks, or

 4 x 1000 lbs Bombs in Underwing Racks, or

 2 x 1,435 lbs Mark XIII Torpedoes, 8,000 lbs Total Bomb Load
CREW :
 8 - Pilot, Co-pilot, Bow Turret Gunner, Flight Mechanic, Radioman,

 Navigator and Two Waist Gunners

PERFORMANCE
MAXIMUM SPEED :
 200 mph @ 5,700 ft, 189 mph @ Sea Level
CRUISING SPEED :

LANDING SPEED :
 72 mph
CLIMB RATE :
 990 ft/min
RANGE :
 1945 mi Patrol, 1245 w/ 2,000 lbs Bomb Load, 1895 miles Max
SERVICE CEILING :
 21,600 ft
