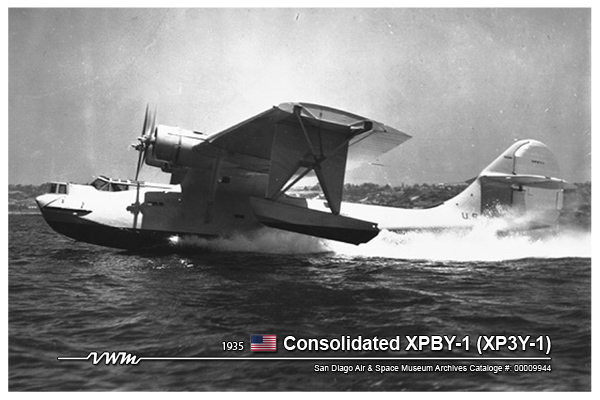

CONSOLIDATED XPBY-1 (XP3Y-1)
1935

TWIN-ENGINE FLYING BOAT - PROTOTYPE


DATA


CONSOLIDATED XPBY-1 CATALINA
 (XP3Y-1)
CLASSIFICATION
CLASS :
 TWIN-ENGINE FLYING BOAT - PROTOTYPE
COUNTRY OF ORIGIN :
 UNITED STATES
MANUFACTURER :
 CONSOLIDATED VULTEE AIRCRAFT CORPORATION
FIRST FLIGHT :
 MARCH 21, 1935
SERVICE DELIVERY :
 NONE
NUMBER BUILT :
 1

SPECIFICATION
SPAN :
 104 ft
LENGTH :
 63 ft 6 in
HEIGHT :
 18 ft 6 in
WING AREA :
 1,400 sq ft
WEIGHT EMPTY :
 12,512 lbs
WEIGHT LOADED :
 19,793 lbs
WEIGHT MAX :
 24,803 lbs
POWER PLANT :
 Two Pratt & Whitney R-1830-58, 825 hp @ Sea Level

 Ugraded - Two Pratt & Whitney R-1830-64, 850 hp @ 8,000 ft,

 900 hp @ Takeoff
ARMAMENT :
 1 x 30 Machine Gun in Nose Turret

 2 x 30 cal Machine Gun Amidship in Two Sliding Waist Hatches

 1 x 30 cal Machine Guns in Bottom Rear of Hull Firing Through

 Tunnel Opening
BOMB LOAD :

CREW :
 8 - Pilot, Co-pilot, Bow Turret Gunner, Flight Mechanic, Radioman,

 Navigator and Two Waist Gunners

PERFORMANCE
MAXIMUM SPEED :
 184 mph @ 8,000 ft, 169 mph @ Sea Level
CRUISING SPEED :
 110 mph
LANDING SPEED :
 58 mph
CLIMB RATE :
 5,000 ft in 4.1 min
RANGE :
 2,070 miles Normal, 4,270 miles Max
SERVICE CEILING :
 18,600 ft
