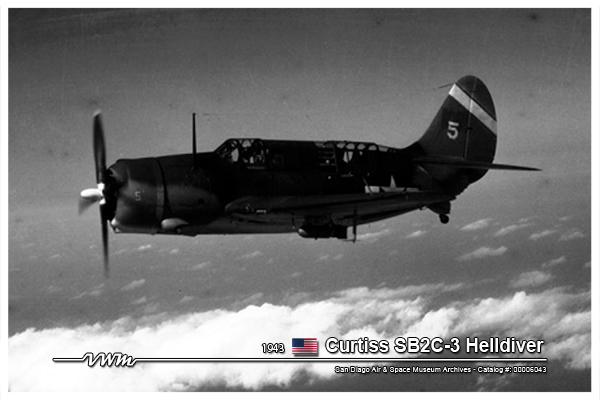

CURTISS SB2C-3 HELLDIVER
1943

DIVE BOMBER


SB2C HELLDIVER FAMILY

 Curtiss XSB2C-1

Curtiss SB2C-1 Helldiver

Curtiss SB2C-1C Helldiver


Curtiss SB2C-3E Helldiver


Curtiss SB2C-4E Helldiver

Curtiss SB2C-5 Helldiver

Curtiss XSB2C-6 Helldiver


CURTISS SB2C HELLDIVER CONTEMPORARIES


Blackburn Skua









OVERVIEW



More to come




DATA


CURTISS SB2C-3 HELLDIVER

CLASSIFICATION
CLASS :
 DIVE BOMBER
COUNTRY OF ORIGIN :
 UNITED STATES
MANUFACTURER :
 Curtiss Aeroplane & Motor Company
FIRST FLIGHT :
 1943
SERVICE DELIVERY :
 1944
NUMBER BUILT :
 1,112

SPECIFICATION
SPAN :
 49 ft 8 in (15.14 m)
LENGTH :
 36 ft 8 in (11.18 m)
HEIGHT :
 14 ft 9 in (4.49 m)
WING AREA :
 422 sq ft (39.23 m sq)
WING LOADING :
 ---
POWER LOADING :
 ---
ASPECT RATIO :
 ---
WEIGHT EMPTY :
 10,493 lb (4760 kg)
WEIGHT LOADED :
 ---
WEIGHT MAX :
 116,750 lb (7598 kg)
ARMAMENT :
 2 x 20 mm cannons in the wings,

 2 x 0.30 in M1919 Browning machine guns in rear cockpit
PAYLOAD :
 2,000 lbs (900 kg) of Bombs or 1 x Mark 13-2 torpedo in Internal Bay,

 2 x 500 lbs (227 kg) Bombs on Underwing Hardpoints;
POWER PLANT :
 1 Wright R-2600-20 Cyclone 14-Cylinder Radial Piston Engine, Rated

 at 1,900 hp (1417 kW)
CREW :
 2 - Pilot & Radio Operator/Rear Gunner


PERFORMANCE
MAXIMUM SPEED :
 293 mph (472 km/h) at 17,000 ft (5180 m); 269 mph at Sea Level
CRUISING SPEED :
 158 mph (254 km/h)
LANDING SPEED :
 79.5 mph (128 km/h)
CLIMB RATE :
 1,830 ft/min (558 m/s)
RANGE
 1,165 miles (1178 km) w/ 1,000 lbs (454 kg) Bomb Load; 1,625 miles

 (2615 km) Max
SERVICE CEILING :
 29,300 ft (8930 m)




REFERENCES
