OVERVIEW

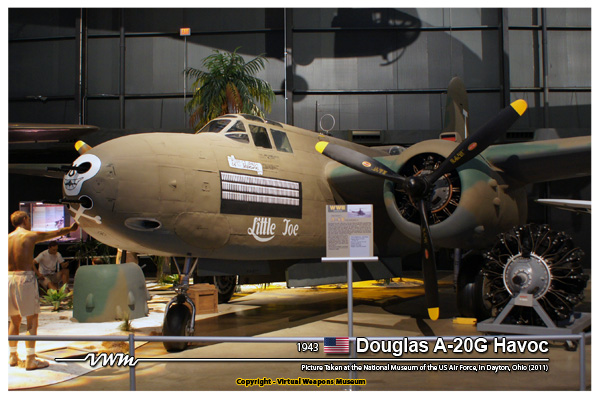

DOUGLAS A-20G HAVOC
1942

LIGHT BOMBER/ATTACK AIRCRAFT




OVERVIEW



…More to come




DATA


DOUGLAS A-20G-5 HAVOC

CLASSIFICATION
CLASS :
 LIGHT BOMBER/ATTACK AIRCRAFT
COUNTRY OF ORIGIN :
 UNITED STATES
MANUFACTURER :
 Douglas Aircraft Company
FIRST FLIGHT :
 1942
SERVICE DELIVERY :
 February 1943
NUMBER BUILT :
 2,850

SPECIFICATION
SPAN :
 61 ft 4 in (18.61 m)
LENGTH :
 48 ft 0 in (14.63 m)
HEIGHT :
 17 ft 7 in (5.36 m)
WING AREA :
 464 sq ft (141.4 m sq)
WING LOADING :
 ---
POWER LOADING :
 ---
ASPECT RATIO :
 ---
WEIGHT EMPTY :
 15,984 lb (7250.2 kg)
WEIGHT LOADED :
 21,971 lb (9965.9 kg)
WEIGHT MAX :
 27,200 lb (12337.7 kg)
ARMAMENT :
 4 × .50-cal M2 Machine Guns Housed in Nose,

 2 × .50-cal. machine guns Fixed in the lower forward fuselage,

 2 × .50-cal M2 Machine Guns flexible in the dorsal position,

 1 × .30-cal. machine gun in flexible ventral tunnel position
PAYLOAD :
 2,000 lbs (907 kg) of Bombs
POWER PLANT :
 2 x Wright R-2600-23 Cyclone supercharged radial Engine, Rated at

 1,600 hp
CREW :
 3


PERFORMANCE
MAXIMUM SPEED :
 339 mph (151.6 km/h) at 12,400 ft (3780 m)
CRUISING SPEED :
 272 mph (121.6 km/h)
LANDING SPEED :
 95 mph (42.5 km)
CLIMB RATE :
 To 10,000 ft (3048 m) in 7.1 min
RANGE :
 1090 miles (1754.2 km)
SERVICE CEILING :
 25,800 ft (7863.8 m)




REFERENCES



Wagner, Raymond. American Combat Planes, Third Enlarged Edition New York: Doubleday & Company, Inc, 1982. ISBN 0-385-13120-8.
