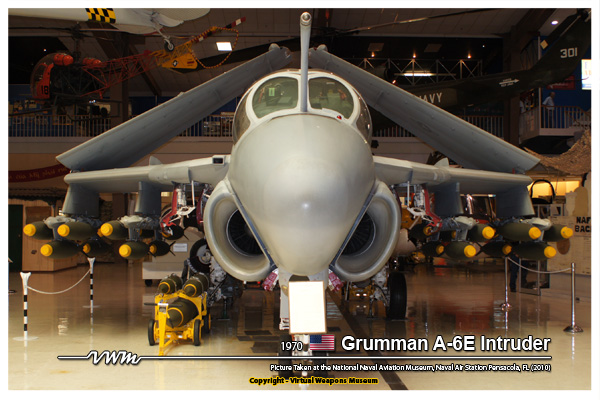

GRUMMAN A-6E INTRUDER |
|
CLASSIFICATION
|
CLASS :
|
ATTACK AIRCRAFT
|
COUNTRY OF ORIGIN :
|
UNITED STATES
|
MANUFACTURER :
|
Grumman Aircraft
Engineering Corporation, (Later Grumman Aerospace
|
|
Corporation)
|
FIRST FLIGHT :
|
February 27, 1970
|
SERVICE DELIVERY :
|
1971
|
NUMBER BUILT :
|
240 (Conversions)
|
| |
|
SPECIFICATION
|
SPAN :
|
53 ft 0 in (16.2 m)
|
LENGTH :
|
54 ft 9 in (16.7 m)
|
HEIGHT :
|
16 ft 2 in (5.08 m)
|
WING AREA :
|
529 sq ft (49.1 m sq) |
WING LOADING :
|
--- |
POWER LOADING :
|
--- |
ASPECT RATIO :
|
--- |
WEIGHT EMPTY :
|
26,746 lb (12132 kg)
|
WEIGHT LOADED :
|
---
|
WEIGHT MAX :
|
60,400 lb (27397 kg)
|
ARMAMENT :
|
NONE
|
PAYLOAD :
|
18,000 lb (8,170 kg) of
Bombs, Missiles, & Rockets;
|
(BOMBS) -
|
Mk 81 250 lb (113 kg) GP Bombs,
|
|
Mk 82 500 lb (227 kg) GP Bombs,
|
|
Mk-84 2,000 lb (907 kg) GP Bombs,
|
|
Mk-117 750 lb (340 kg) GP Bombs,
|
|
Mk-20 Rockeye II Cluster Bombs,
|
|
CBU-89 GATOR Mine Cluster Bombs,
|
|
Mk 77 750 lb (340 kg) Incendiary Bombs,
|
|
GBU-10 Paveway II Laser-Guided Bombs,
|
|
GBU-12 Paveway II Laser-Guided Bombs,
|
|
GBU-16 Paveway II Laser-Guided Bombs,
|
|
B61 Nuclear Bomb,
|
|
B43 Nuclear Bomb,
|
(MISSILES) -
|
AIM-9 Sidewinder Air-to-air missiles,
|
|
AGM-45 Shrike Air-to-Ground Missiles,
|
|
AGM-62 Walleye Air-to-Ground Missiles,
|
|
AGM-65 Maverick, Air-to-Ground Missiles,
|
|
AGM-84 Harpoon, Air-to-Ground Missiles,
|
|
AGM-88 HARM Air-to-Ground Missiles,
|
(ROCKETS) -
|
2.75 in (70 mm) CRV7 Rocket Pod,
|
|
5 in (127 mm) Zuni Rocket Pod,
|
POWER PLANT :
|
2 x Pratt & Whitney 352-P-8A or 8B Turbojets, Rated at 9,300 lbf
|
|
(41.4 kN) each
|
CREW :
|
2 - Pilot & Bombardier/Navigator
|
|
|
PERFORMANCE
|
MAXIMUM SPEED :
|
644 mph (1036 km/h) at Sea Level
|
CRUISING SPEED :
|
474 mph (763 km/h) at 30,000 ft (9144 m)
|
LANDING SPEED :
|
---
|
CLIMB RATE :
|
7,620 ft/min (2323 m/min)
|
RANGE :
|
1,010 miles (1625 km) with Max Load
|
SERVICE CEILING :
|
42,400 ft (12924 m)
|
|
|
