OVERVIEW

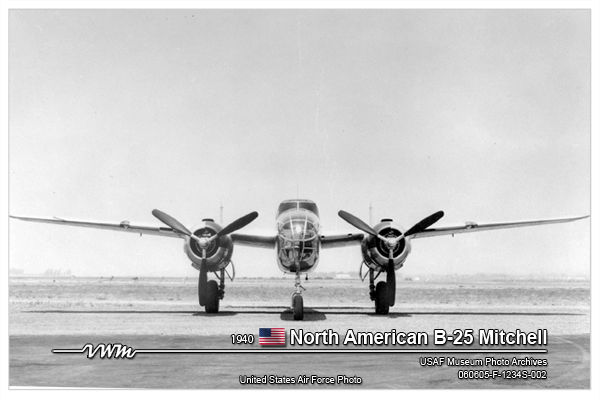

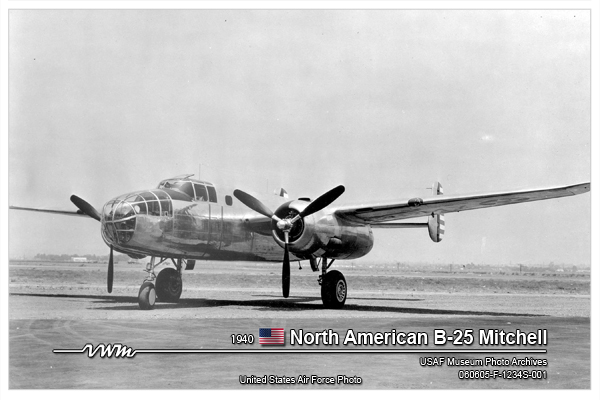

NORTH AMERICAN B-25 MITCHELL
1940

TWIN ENGINE MEDIUM BOMBER






OVERVIEW



The B-25 Mitchell was possibly the best and the most important tactical medium bomber design of World War II. It was named in honor of the late General Billy Mitchell, who is considered the father of modern American air power. Designed by a company with no previous experience with bombers or high performance aircraft the B-25 was to become one of the most successful American twin-engine bomber of World War Two.

Made famous by the daring attack on the Japanese homeland, the Doolittle raid help immortalized the bomber and raise the morale of an entire nation…More to come




DATA


NORTH AMERICAN B-25 MITCHELL
( NA-62 )
CLASSIFICATION
CLASS :
 TWIN ENGINE MEDIUM BOMBER
COUNTRY OF ORIGIN :
 UNITED STATES
MANUFACTURER :
 NORTH AMERICAN AVIATION INC
FIRST FLIGHT :
 AUGUST 1940
SERVICE DELIVERY :
 1940
NUMBER BUILT :
 24

SPECIFICATION
SPAN :
 67 ft 7 in
LENGTH :
 54 ft 1 in
HEIGHT :
 15 ft 9 in
WING AREA :
 610 sq ft
WEIGHT EMPTY :
 16,767 lbs
WEIGHT LOADED :
 23,714 lbs
WEIGHT MAX :
 27,310 lbs
ARMAMENT :
 1 x 30 Machine Gun in Nose

 3 x 30 Machine Gun Amidship

 1 x 50 Machine Gun in Tail Position
BOMB LOAD :
 3,600 lbs (1,635 kg)
POWER PLANT :
 Two 1,700 hp Wright R-2600-9 Double

 Cyclone 14-cylinder Two-Row Radials
CREW :
 5: Pilot, Co-Pilot, Bombardier, Navigator/Radio

 Operator, & Tail Gunner

PERFORMANCE
LANDING SPEED :
 90 mph
CRUISING SPEED :
 262 mph
MAXIMUM SPEED :
 322 mph @ 15,000ft
CLIMB RATE :
 2,090 ft./min
RANGE :
 2,000 miles w/ 3,000 lbs of Bombs
SERVICE CEILING :
 30,000 ft




REFERENCES



Gunston, Bill. The Illustrated Directory of Fighting Aircraft of World War II. New York: Prentice Hall Press. 1988. ISBN 0-13-450454-2.

McDowell, Ernest R. B-25 Mitchell In Action. Texas: Squadron/Signal Publications, Inc. 1978. ISBN 0-89747-033-8.

Gunston, Bill. JANE'S Fighting Aircraft of World War II. New Jersey: Crescent Books, 1992. ISBN 0-517-67964-7.

Wagner, Raymond. American Combat Planes, Third Enlarged Edition New York: Doubleday & Company, Inc, 1982. ISBN 0-385-13120-8.
