OVERVIEW

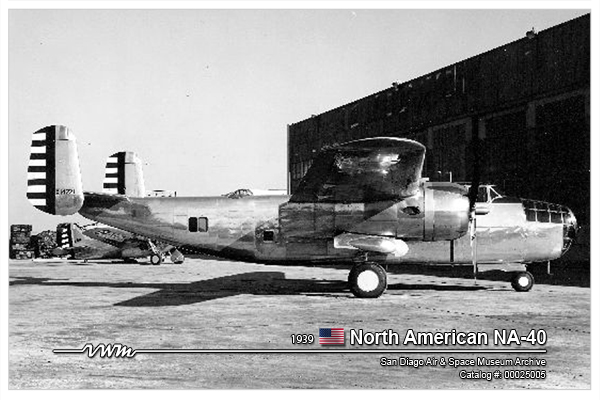

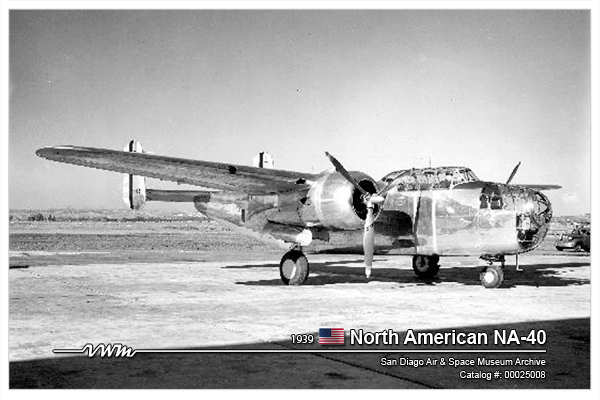

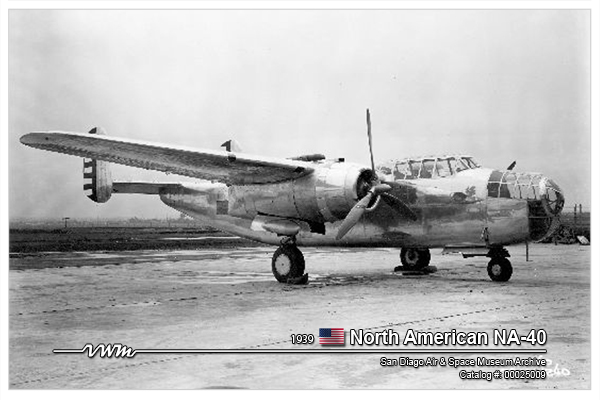

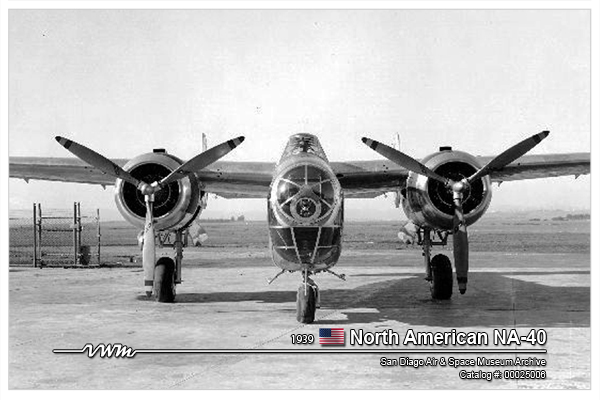

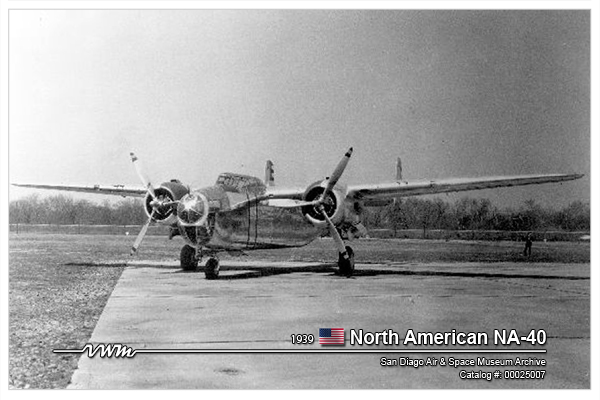

NORTH AMERICAN NA-40
1939

TWIN ENGINE MEDIUM BOMBER (PROTOTYPE)







OVERVIEW



The B-25 Mitchell was possibly the best and the most important tactical medium bomber design of World War II. It was named in honor of the late General Billy Mitchell, who is considered the father of modern American air power. Designed by a company with no previous experience with bombers or high performance aircraft the B-25 was to become one of the most successful American twin-engine bomber of World War Two.

Made famous by the daring attack on the Japanese homeland, the Doolittle raid help immortalized the bomber and raise the morale of an entire nation…More to come




DATA


NORTH AMERICAN NA-40B

CLASSIFICATION
CLASS :
 TWIN ENGINE MEDIUM BOMBER PROTOTYPE
COUNTRY OF ORIGIN :
 UNITED STATES
MANUFACTURER :
 NORTH AMERICAN AVIATION INC
FIRST FLIGHT :
 JANUARY 1939
SERVICE DELIVERY :
 0
NUMBER BUILT :
 1

SPECIFICATION
SPAN :
 66 ft 0 in
LENGTH :
 47 ft 10 in (m)
HEIGHT :
 23 ft
WING AREA :
 599 sq ft
WEIGHT EMPTY :
 13,961 lbs
WEIGHT LOADED :
 19,741 lbs
WEIGHT MAX :
 ---
ARMAMENT :
 1 x .30cal Machine Gun in Rotating Nose Blister

 1 x .30cal Machine Gun in Top Turret

 1 x .30cal Machine Gun in Aft (Downward Through Floor)

 1 x .30cal Machine Gun in Aft (Mid Upper Position)

 2 x .30cal Fixed Machine Guns in Each Wing (Optional)
BOMB LOAD :
 2,100 lbs ( kg)
POWER PLANT :
 Two 1,500 hp Wright R-2600-A71-3 Double Cyclone

 14-cylinder Two-Row Radials
CREW :
 5: Pilot, Co-Pilot, Bombardier, Navigator, Radio Operator,

 & Aft Gunner

PERFORMANCE
LANDING SPEED :
 ---
CRUISING SPEED :
 282 mph
MAXIMUM SPEED :
 309 mph @ 14,000ft
CLIMB RATE :

RANGE :
 1,200 miles w/ 1,200 lbs of Bombs ( km)
SERVICE CEILING :
 25,000 ft




REFERENCES



Wagner, Ray. American Combat Planes. New York: Doubleday & Company. 1982. ISBN 0-385-13120-8.

McDowell, Ernest R. B-25 Mitchell In Action. Texas: Squadron/Signal Publications, Inc. 1978. ISBN 0-89747-033-8.
