OVERVIEW

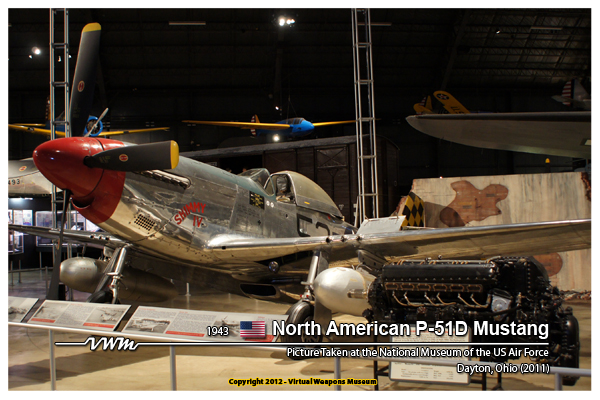

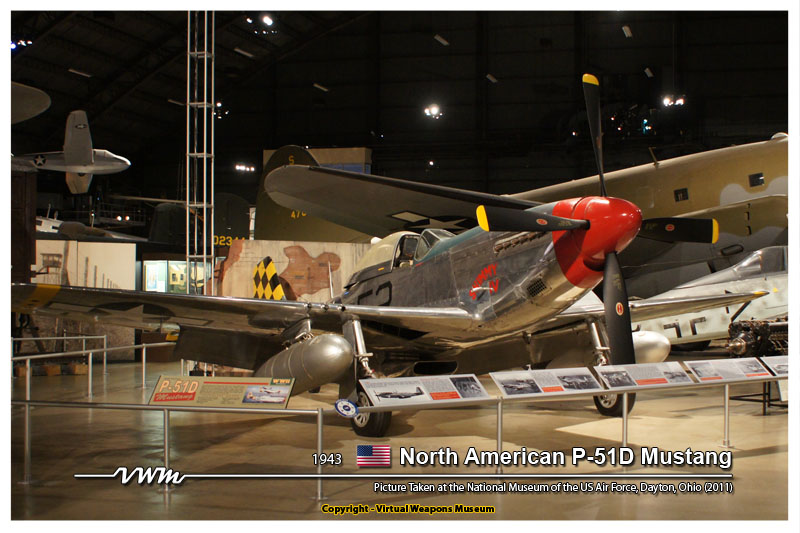

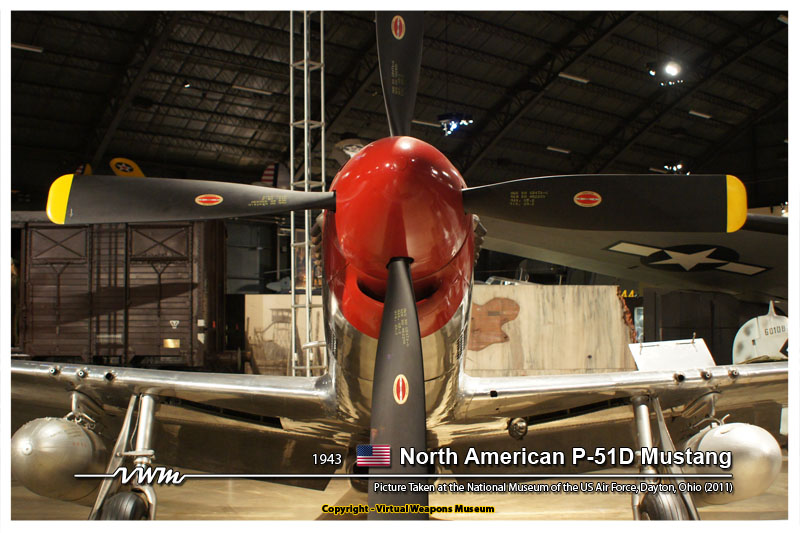

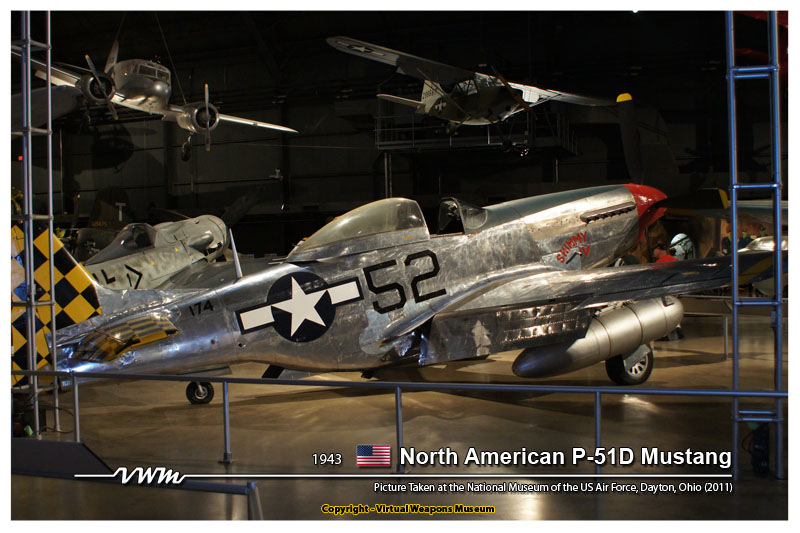

NORTH AMERICAN P-51D MUSTANG
1943

FIGHTER






OVERVIEW



Even though later designs were lighter and faster the P-51D is consider by many as the definitive Mustang design of World War Two. The D model was the first aircraft capable of flying from England to Berlin nonstop, a feat no other aircraft could do at that time. This model finally answer the Allies' prayers for a long distance escort fighter capable of escorting bombers to-and-fro their intended targets, including Berlin. Not only was it capable of flying long distances, once the aircaft dropped its wing mounted fuel tanks, it could fight on equal terms with anything the Luftwaffe could put into the air. It has been said that when Hermann Göring, the Commander-in-Chief of the Luftwaffe, saw the Mustangs flying over Berlin that the war for Germany was over.

…More to come




DATA


NORTH AMERICAN P-51D MUSTANG
(P-51D-5)
CLASSIFICATION
CLASS :
 FIGHTER
COUNTRY OF ORIGIN :
 UNITED STATES
MANUFACTURER :
 NORTH AMERICAN AVIATION INC
FIRST FLIGHT :
 1943
SERVICE DELIVERY :
 1944
NUMBER BUILT :
 6,502 - P-51D-NA

 1,454 - P-51D-NT

SPECIFICATION
SPAN :
 37 ft
LENGTH :
 32 ft 3 in
HEIGHT :
 13 ft 8 in
WING AREA :
 233 sq ft
WEIGHT EMPTY :
 7,125 lbs
WEIGHT LOADED :
 10,100 lbs
WEIGHT MAX :
 11,600 lbs
ARMAMENT :

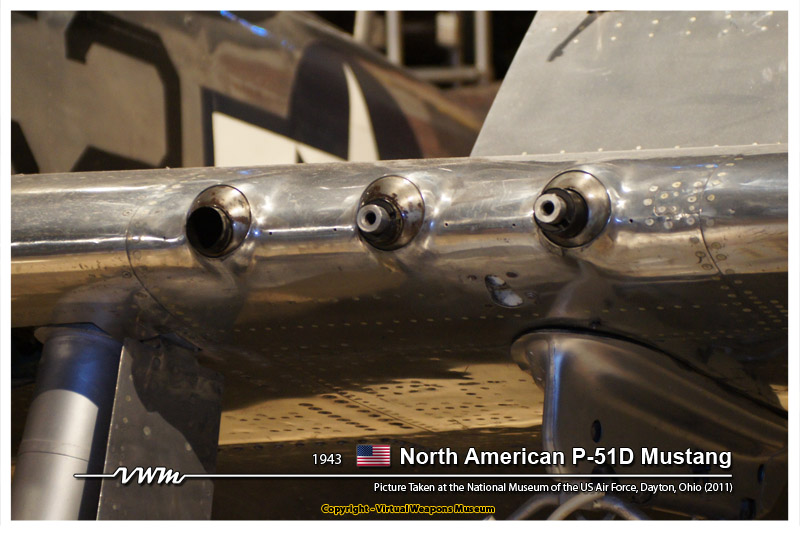

 6 x .50cal Fixed Machine Gun in Wings
(OPTIONAL)
 6 x 4.5 in Rockets, Hung Under Wing in 3 Tube Clusters

 10 x 5 in Wing Mounted Rockets

 110 gal (416 L) Metal Drop Tank

 75 gal (283 L) Metal Drop Tank

 108 gal (408 L) Reinforced Paper Drop Tank
BOMB LOAD :
 2,000 lbs
POWER PLANT :
 One 1,490 hp Packard Merlin V-1650-7

 Two-Stage Suppercharged Liquid-Cooled

 12-cylinder Vee Piston Engine
CREW :
 1 - Pilot

PERFORMANCE
LANDING SPEED :
 100 mph
CRUISING SPEED :
 362 mph
MAXIMUM SPEED :
 437 mph @ 25,000 ft
CLIMB RATE :
 3,475 per min, 30,000 ft in 13 mins
RANGE :
 950 miles, 2,300 miles Max
SERVICE CEILING :
 41,900 ft




REFERENCES



Gunston, Bill. The Illustrated Directory of Fighting Aircraft of World War II, New York: Prentice Hall Press. 1988. ISBN 0-13-450454-2.

Gunston, Bill. JANE'S Fighting Aircraft of World War II, New Jersey: Crescent Books, 1992. ISBN 0-517-67964-7.

Taylor, Michael J.H. JANE'S American Fighting Aircraft of the 20th Century, New York: Mallard Press, 1991. ISBN 0-7924-5627-0.

Wagner, Raymond. American Combat Planes, Third Enlarged Edition New York: Doubleday & Company, Inc, 1982. ISBN 0-385-13120-8.

Angelucci, Enzo. & Bowers, Peter. The American Fighter, New York: Orion Books, 1987. ISBN 0-517-56588-9.

Davis, Larry. P-51 Mustang In Action. Texas: Squadron/Signal Publications, Inc. 1981. ISBN 0-89747-114-8.
