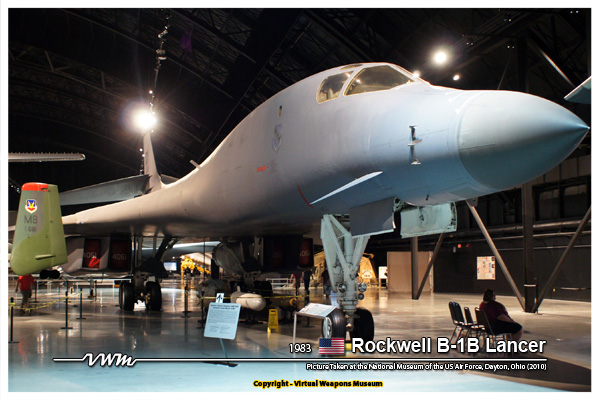

ROCKWELL B-1B LANCER |
|
CLASSIFICATION
|
CLASS :
|
SUPERSONIC STRATEGIC BOMBER
|
COUNTRY OF ORIGIN :
|
UNITED STATES
|
MANUFACTURER :
|
Rockwell International/Boeing
|
FIRST FLIGHT :
|
March 1983
|
SERVICE DELIVERY :
|
October 1, 1986
|
NUMBER BUILT :
|
100
|
| |
|
SPECIFICATION
|
SPAN :
|
Wings Extended: 137 ft (41.8 m);
|
|
Wings Swept: 79 ft (24.1 m)
|
LENGTH :
|
146 ft (44.5 m)
|
HEIGHT :
|
34 ft (10.4 m)
|
WING AREA :
|
1,950 sq ft (181.2 m sq) |
WING LOADING :
|
167 lb/ft sq (816 kg/m sq) |
POWER LOADING :
|
0.38 |
ASPECT RATIO :
|
--- |
WEIGHT EMPTY :
|
192,000 lb (87,100 kg)
|
WEIGHT LOADED :
|
326,000 lb (148,000 kg)
|
WEIGHT MAX :
|
477,000 lb (216,400 kg)
|
ARMAMENT :
|
NONE
|
PAYLOAD :
|
50,000 lb (22,700 kg) in 6 x External Hardpoints and
|
|
75,000 lb (34,000 kg) in 3 x Internal Bomb Bays;
|
-
|
Ordnace may include the following:
|
BOMBS -
|
84 x Mk-82 Air inflatable retarder (AIR) general purpose (GP) bombs
|
|
81 x Mk-82 low drag general purpose (LDGP) bombs
|
|
84 x Mk-62 Quickstrike sea mines
|
|
24 x Mk-65 naval mines
|
|
30 x CBU-87/89/CBU-97 Cluster Bomb Units (CBU)
|
|
30 x CBU-103/104/105 Wind Corrected Munitions Dispenser (WCMD)
|
|
24 x GBU-31 JDAM GPS guided bombs (Mk-84 GP or BLU-109 warhead)
|
|
15 x GBU-38 JDAM GPS guided bombs (Mk-82 GP warhead)
|
|
48 x GBU-38 JDAM (w/ rotary launcher mounted multiple ejector racks)
|
|
24 x Mk-84 general purpose bombs
|
|
12 x AGM-154 Joint Standoff Weapon (JSOW)
|
|
96 x or 144× GBU-39 Small Diameter Bomb GPS guided bombs
|
|
24 x AGM-158 Joint Air to Surface Standoff Munitions (JASSM)
|
|
24 x B61 nuclear variable-yield gravity bombs
|
|
24 x B83 nuclear gravity bombs
|
AVIONICS :
|
- 1 x AN/APQ-164 forward-looking offensive passive phased-array
|
|
radar
|
|
- 1 x AN/ALQ-161 radar warning and defensive jamming equipment
|
|
- 1 x AN/ASQ-184 defensive management system
|
|
- 1 x Lockheed Martin Sniper XR targeting pod
|
POWER PLANT :
|
4 × General Electric F101-GE-102 augmented turbofan Engines,
|
|
Producing 14,600 lbf (64.9 kN) each; 30,780 lbf (136.92 kN) each
|
|
(w/ Afterburner)
|
CREW :
|
4 - Pilot, Copilot, Offensive Systems Officer, and Defensive System
|
|
Officer
|
|
|
PERFORMANCE
|
MAXIMUM SPEED :
|
830 mph (1,340 km/h, Mach 1.25) at 50,000 ft (15,000 m)
|
|
700 mph (1,130 km/h, Mach 0.92 ) at 200–500 ft (60-150 m)
|
CRUISING SPEED :
|
---
|
LANDING SPEED :
|
---
|
CLIMB RATE :
|
---
|
RANGE :
|
7,456 miles (11998 km)
|
SERVICE CEILING :
|
60,000 ft (18,000 m)
|
|
|
